Welcome! This will be a quick tutorial to accquaint users with diffpy.morph
and some of what it can do. To see more details and definitions about
the morphs please see the publication describing diffpy.morph.
To be published:
As we described in the README and installation instructions, please make
sure that you are familiar with working with your command line terminal
before using this application.
Before you’ve started this tutorial, please ensure that you’ve installed
all necessary software and dependencies.
In this tutorial, we will demonstrate how to use diffpy.morph to compare
two
PDFs measured from the same material at different temperatures.
The morphs showcased include “stretch”, “scale”, and “smear”.
If it’s not active already, activate your diffpy.morph-equipped
conda environment by typing in
condaactivate<diffpy_morph_env>
If you need to list your available conda environments,
run the command condainfo--envs or
condaenvlist
Run the diffpy.morph--help command and read over the
info on that page for a brief overview of some of what we will
explore in this tutorial.
Using the mkdir command, create a directory where you’ll
store the tutorial PDF files and use the cd command to change
into that directory. You can download the tutorial files
here.
Then, cd into the tutorialData directory.
The files in this dataset were collected by Soham Banerjee
at Brookhaven National Laboratory in Upton, New York.
The files are PDF data collected on Iridium Telluride with
20% Rhodium Doping (IrRhTe2) with the first file (01) collected
at 10K and the last (44) at 300K. The samples increase in
temperature as their numbers increase. The “C” in their names
indicates that they have undergone cooling.
Note that these files have the .gr extension, which
indicates that they are measured PDFs. The .cgr file
extension indicates that a file is a calculated PDF, such as
those generated by the
PDFgui
program.
First, we will run the diffpy.morph application without any morphing
and only using one PDF. Type the following command into your
command line
Without morphing, the difference Rw = 0.407. This indicates that
the two PDFs vary drastically.
While running the diffpy.morph command, it is important
to remember that the first PDF file argument you provide
(in this case, darkSub_rh20_C_01.gr) is the PDF which
will get morphed, while the second PDF file argument you
provide (here, darkSub_rh20_C_44.gr) is the PDF which
acts as the model and does not get morphed. Hereinafter,
we will refer to the first PDF argument as the “morph”
and the second as the “target”, as the diffpy.morph display
does.

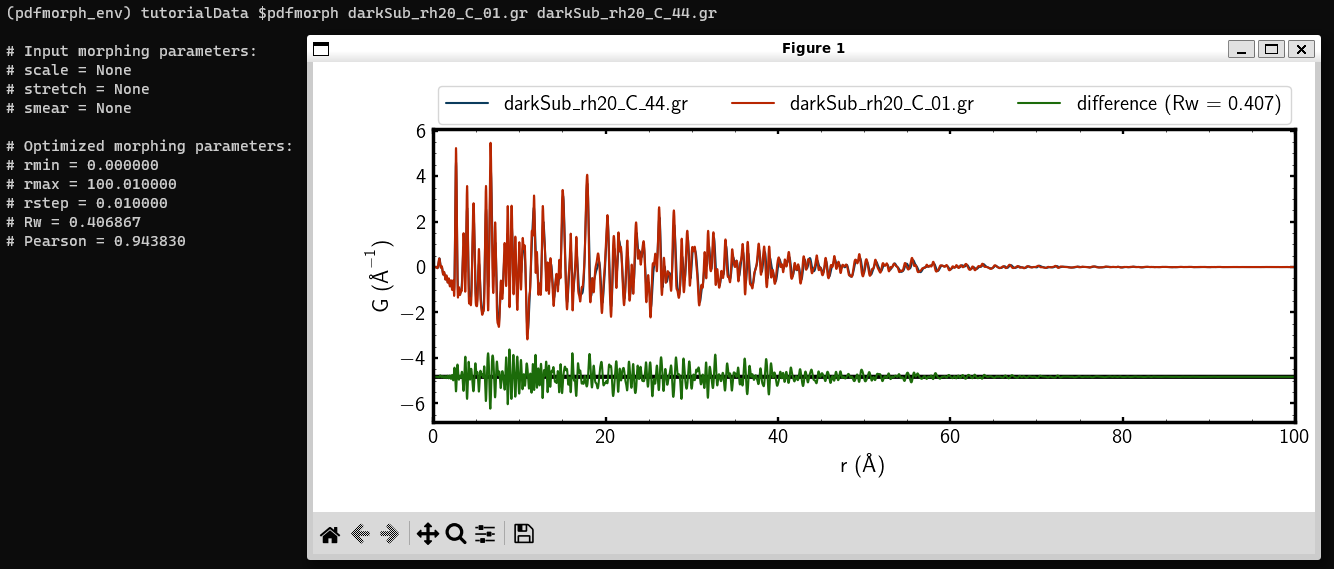

Using diffpy.morph to compare two different PDFs without morphing.
Now, we will start the morphing process, which requires us to
provide initial guesses for our scaling factor, Gaussian smear,
and stretch, separately. We will start with the scaling factor.
Begin by typing the command
Now, the difference Rw = 1.457, a significant increase from our
value previously. We must modify our initial value for the
scaling factor and do so until we see a reduction in the
difference Rw from the unmorphed value. Type
The difference Rw is now 0.351, lower than our unmorphed
example’s value. To see diffpy.morph optimize the scale factor,
simply drop -a from the command and type
diffpy.morph, given a reasonable initial guess, will use find the
optimal value for each morphing feature. Here, we see that
diffpy.morph displays scale=0.799025 in the command prompt,
meaning that it has found this to be the most optimal value for
the scale factor. The difference Rw = 0.330, indicating a
better fit than our reasonable initial guess.
It is the choice of the user whether or not to run values
before removing -a when analyzing data with diffpy.morph.
By including it, you allow the possibility to move towards
convergence before allowing the program to optimize by
removing it; when including it, you may reach a highly
optimized value on the first guess or diverge greatly.
In this tutorial, we will use it every time to check
for convergence.

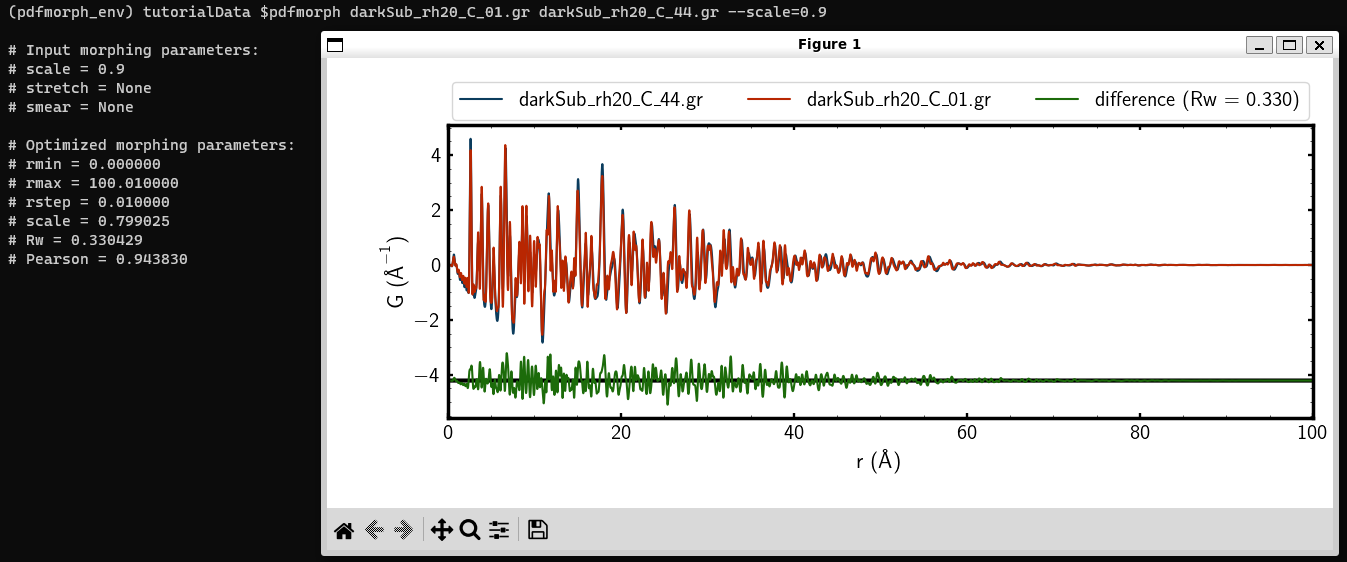

diffpy.morph found an optimal value for the scale factor.
Now, we will examine the Gaussian smearing factor. We provide an
initial guess by typing
And viewing the results. We’ve tailored our scale factor to be
close to the value given by diffpy.morph, but see that the difference
Rw has increased substantially due to our smear value. One
approach, as described above, is to remove the -a from the
above command and run it again.
Note: The warnings that the Terminal/Command Prompt
displays are largely numerical in nature and do not
indicate a physically irrelevant guess. These are somewhat
superficial and in most cases can be ignored.
We see that this has had hardly any effect on our PDF. To see
an effect, we restrict the rmin and rmax values to
reflect relevant data range by typing
Now, we see that the difference Rw = 0.204 and that the optimized
smear=-0.084138.
We restricted the r values because some of the Gaussian
smear effects are only visible in a fixed r range. We
chose this r range by noting where most of our relevant
data was that was not exponentially decayed by
instrumental shortcomings.
We are getting closer to an acceptably close fit to our data!
Finally, we will examine the stretch factor. Provide an initial
guess by typing
And noting that the difference has increased. Before continuing,
see if you can see which direction (higher or lower) our initial
estimate for the stretch factor needs to go and then removing
the -a to check optimized value!
to observe decreased difference and then remove -a to see
the optimized --stretch=0.001762. We have now reached
the optimal fit for our PDF!

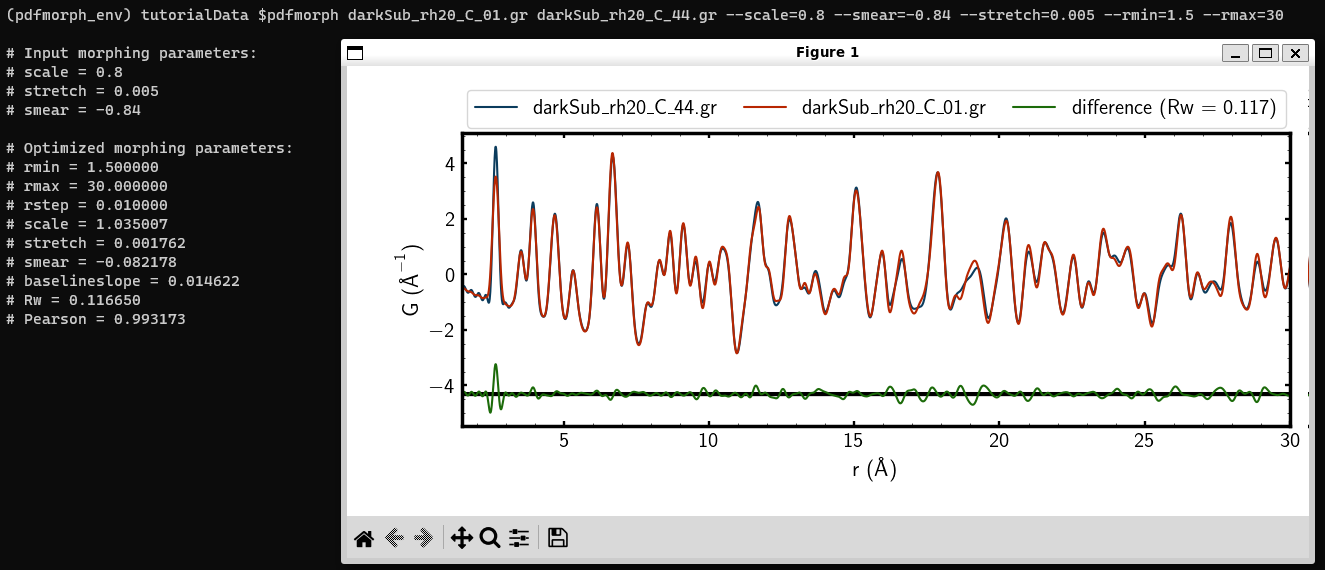

The optimal fit after applying the scale, smear, and stretch morphs.
Now, try it on your own! If you have personally collected or
otherwise readily available PDF data, try this process to see if
you can morph your PDFs to one another. Many of the parameters
provided in this tutorial are unique to it, so be cautious about
your choices and made sure that they remain physically relevant.
diffpy.morph has some more functionalities not showcased in the basic workflow above
(see diffpy.morph –help for an overview of these functionalities).
Tutorials for these additional functionalities are included below. Additional
files for these tutorials can be downloaded
here.
It may be useful to morph a PDF against multiple targets:
for example, you may want to morph a PDF against multiple PDFs measured
at various temperatures to determine whether a phase change has occurred.
diffpy.morph currently allows users to morph a PDF against all files in a
selected directory and plot resulting \(R_w\) values from each morph.
Within the additionalData directory, cd into the
morphsequence directory. Inside, you will find multiple PDFs of
\(SrFe_2As_2\) measured at various temperatures. These PDFs are
from “Atomic Pair Distribution Function Analysis: A primer”.
Let us start by getting the Rw of SrFe2As2_150K.gr compared to
all other files in the directory. Run
diffpy.morphSrFe2As2_150K.gr.--multiple-targets
The multiple tag indicates we are comparing PDF file (first input)
against all PDFs in a directory (second input). Our choice of file
was SeFe2As2_150K.gr and directory was the cwd, which should be
morphsequence.:

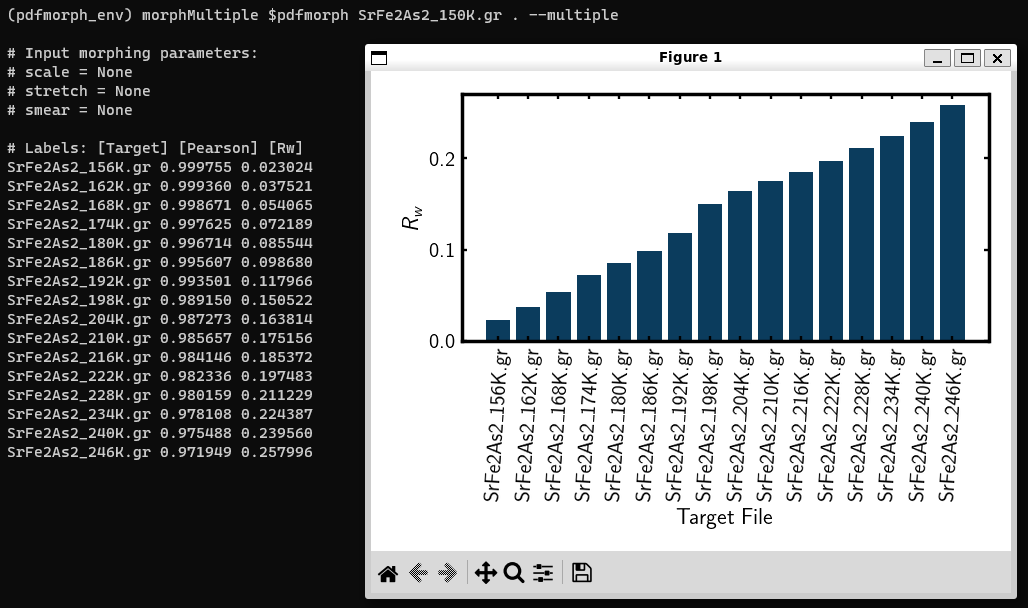

Bar chart of \(R_W\) values for each target file. Target files are
listed in ASCII sort order.
After running this, we get chart of Rw values for each target file.
However, this chart can be a bit confusing to interpret. To get a
more understandable plot, run
This plots the Rw against the temperature parameter value provided
at the top of each file. Parameters are entries of the form
<parameter_name>=<parameter_value> and are located above
the r versus gr table in each PDF file.:

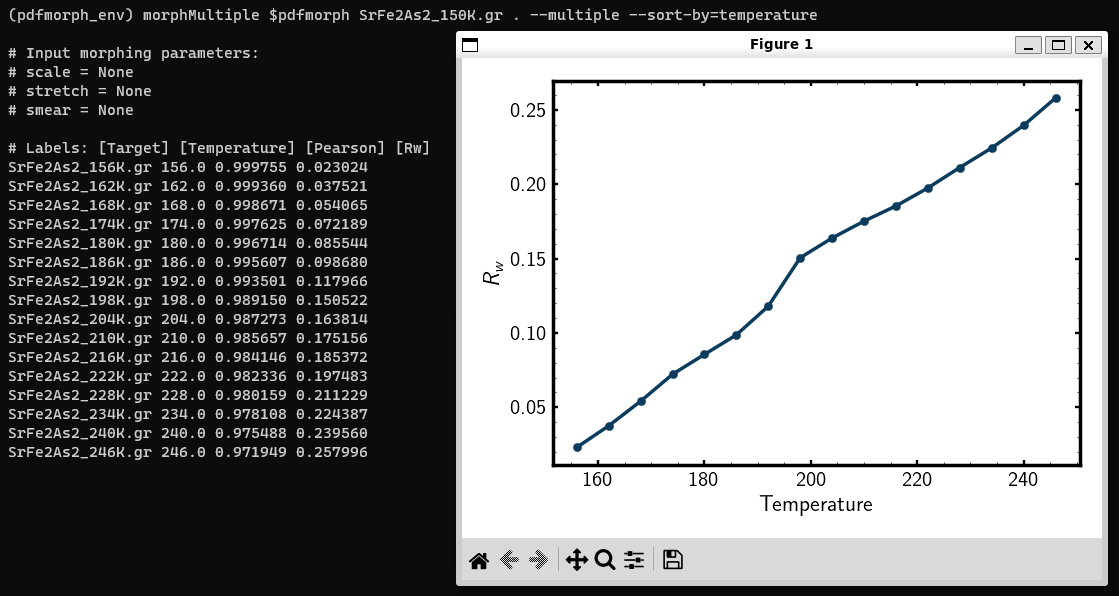

The \(R_W\) plotted against the temperature the target PDF was
measured at.
Between 192K and 198K, the Rw has a sharp increase, indicating that
we may have a phase change. To confirm, let us now apply morphs
onto `` SrFe2As2_150K.gr`` with all other files in
morphsequence as targets
Note that we are not applying a smear since it takes a long time to
apply and does not significantly change the Rw values in this example.
We should now see a sharper increase in Rw between 192K and 198K.
Go back to the terminal to see optimized morphing parameters from each morph.
On the morph with SrFe2As2_192K.gr as target, scale=0.972085 and stretch=0.000508 and with SrFe2As2_198K.gr
as target, scale=0.970276 and stretch=0.000510. These
are very similar, meaning that thermal lattice expansion (accounted
for by stretch) is not occurring. This, coupled with the fact
that the Rw significantly increases suggests a phase change in this
temperature regime. (In fact, \(SrFe_2As_2\) does transition
from orthorhombic at lower temperature to tetragonal at higher
temperature!). More sophisticated analysis can be done with
PDFgui.
Finally, let us save all the morphed PDFs into a directory
named saved-morphs.
Entering the directory with cd and viewing its contents with
ls, we see a file named morph-reference-table.txt with data
about the input morph parameters and re- fined output parameters
and a directory named morphs containing all the morphed
PDFs. See the --save-names-file option to see how you can set
the names for these saved morphs!
A nanoparticle’s finite size and shape can affect the shape of its PDF.
We can use diffpy.morph to morph a bulk material PDF to simulate these shape effects.
Currently, the supported nanoparticle shapes include: spheres and spheroids.
Within the additionalData directory, cd into the
morphShape subdirectory. Inside, you will find a sample Ni bulk
material PDF Ni_bulk.gr. This PDF is from `”Atomic Pair
Distribution Function Analysis:
A primer” <https://global.oup.com/academic/product/
There are also multiple .cgr files with calculated Ni nanoparticle PDFs.
Let us apply various shape effect morphs on the bulk material to
reproduce these calculated PDFs.
Spherical Shape
The Ni_nano_sphere.cgr file contains a generated
spherical nanoparticle with unknown radius. First, let us
plot Ni_blk.gr against Ni_nano_sphere.cgr
diffpy.morphNi_bulk.grNi_nano_sphere.cgr
Despite the two being the same material, the Rw is quite large.
To reduce the Rw, we will apply spherical shape effects onto the PDF.
However, in order to do so, we first need the radius of the
spherical nanoparticle.
To get the radius, we can first observe a plot of
Ni_nano_sphere.cgr
diffpy.morphNi_nano_sphere.cgrNi_nano_sphere.cgr
Nanoparticles tend to have broader peaks at r-values larger
than the particle size, corresponding to the much weaker
correlations between molecules. On our plot, beyond r=22.5,
peaks are too broad to be visible, indicating our particle
size to be about 22.4. The approximate radius of a sphere
would be half of that, or 11.2.:
After refining, we see the actual radius of the
nanoparticle was closer to 12.
Spheroidal Shape
The Ni_nano_spheroid.cgr file contains a calculated
spheroidal Ni nanoparticle. Again, we can begin by plotting
the bulk material against our nanoparticle
diffpy.morphNi_bulk.grNi_nano_spheroid.cgr
Inside the Ni_nano_spheroid.cgr file, we are given that
the equatorial radius is 12 and polar radius is 6. This is
enough information to define our spheroid. To apply
spheroid shape effects onto our bulk, run
Note that the equatorial radius corresponds to the
--radius parameter and polar radius to --pradius.
Remove the -a tag to refine.
There is also support for morphing from a nanoparticle to a bulk. When
applying the inverse morphs, it is recommended to set --rmax=psize
where psize is the longest diameter of the nanoparticle.
